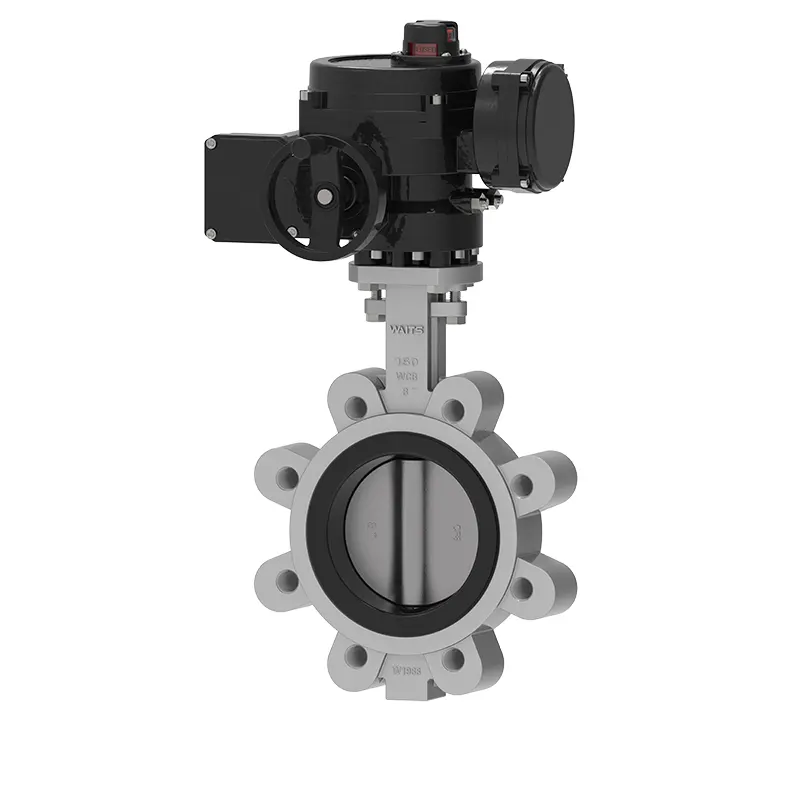

Listrik Lug Leuleus Seated Kukupu klep

The electric lug soft seated butterfly valve is a high-quality product of Waits, manufactured in a Chinese factory, using safe and environmentally friendly high-quality materials, and has reached the standard that can be used for food pipelines. We were originally established in the United States and later established our headquarters in Wenzhou, China, and can provide you with the first-time delivery and related service support.

Kirim Pananya

Panjelasan Produk

Di handap ieu aya sababaraha titik paling pantes dina desain lug listrik klep kukupu lemes seated, nu geus pinuh dianggap dina watesan bahan, struktur jeung kinerja.

1. Élastisitas luhur karét korsi klep: Eusi karét korsi klep EPDM nyaéta 50%. Urang ngagantelkeun pentingna hébat kana kualitas, sarta leuwih ti 10.000 bubuka jeung nutup simulasi mastikeun yén klep téh bocor-gratis.

Data kinerja relevan lianna bisa disebut kieu: Shore A karasa / darajat 72±3, 200% tegangan tensile / Mpa≥6, kakuatan tensile MPa≥15, elongation dina putus /% ≥350, deformasi permanén dina putus /% ≦ 10, kakuatan cimata / KN.m-1≥35, komprési deformasi permanén (70 ℃ * 22h, komprési laju 25%) /% ≦20.

Leuwih ti éta, korsi klep kami dirancang kalayan ujung lega, kalayan diaméter ngeunaan 20mm, nu boga permukaan kontak lega jeung flange pipa ti korsi klep sempit-ujung, sarta boga kinerja sealing hadé.

2. Kusabab masang pin bisa ngabalukarkeun korosi sarta leakage, kami nganggo sambungan pinless antara plat kukupu jeung aci klep, nu ngajadikeun aci klep gampang ngabongkar sarta facilitates ngagantian tina korsi klep.

3. Awak klep ieu dilengkepan hiji alat anti scattering, nu leuwih aman.

Standar Palaksanaan

Standar Desain	EN 593 / MSS SP-67 / API 609 / ISO 5752 / BS 5155
Standar tungtung	ANSI B16.1 CL. 125LB jeung B16,5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 sareng PN16 AS 2129 Tabél D jeung E BS 10 Tabél D jeung E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 jeung PN16 ISO 7005 PN6, PN10 jeung PN16
Inspeksi & Test	API 598 ISO 5208 EN 12266
Nyanghareupan	ISO 5752, EN 558, MSS SP67 sareng API 609 DIN3202
Top Flange	ISO 5211

Aplikasi

Suhu Operasi	-45 ℃ ~ + 150 ℃
UKURAN	2"-32" DN50-DN800 34"-80"DN850-DN2000
Tekanan kerja / CWP	16BAR 10BAR
Cangkang	24BAR 15BAR
Segel	18BAR 10BAR
Uji hawa	6BAR 6BAR
Lingkungan Operasi	Ballast jeung sistem bilge processing Kimia tutuwuhan desalination, rigs pangeboran, cai nginum Dry powder,Food and beverage,Gas plants Industri Pertambangan HAVC, Industri Kertas, Penanganan Keusik, Cai Laut, Industri Gula Thermo teknis perlakuan cai Cai runtah
Métode nyetir	Leungeun Lever Worm Gear Electric Pneumatic
AWAK	Tuang Beusi ductile Beusi Karbon Steel steel AL-perunggu
DISC	Tuang Beusi ductile Beusi Karbon Steel steel AL-perunggu
STEM	2CR13 F304 F316 F51 F53 Monel K500
KORSI	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon karét alam
