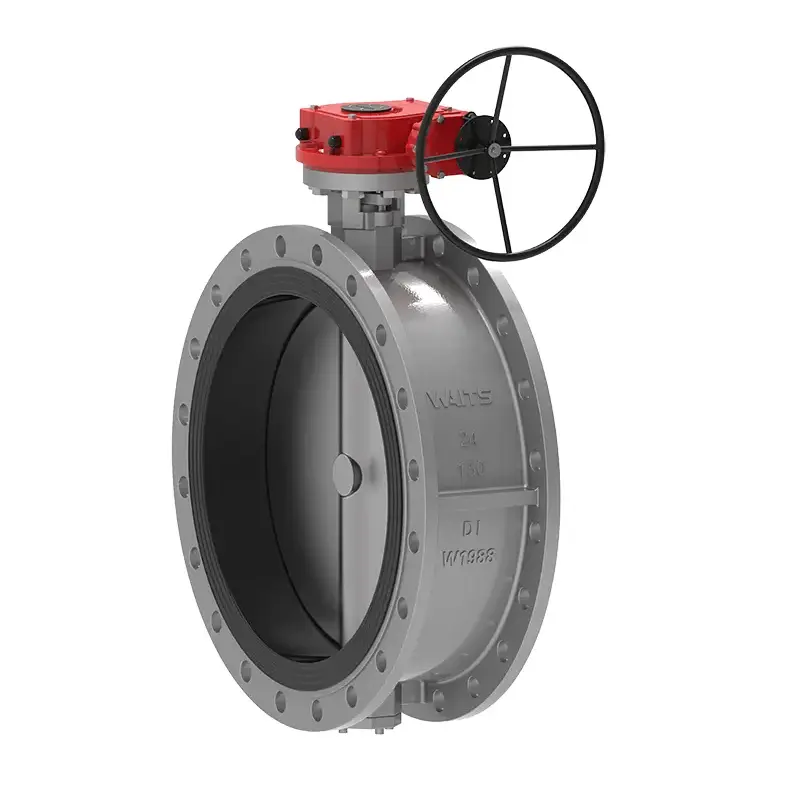

Lemes Seated Double Flange Kukupu klep

Waits mangrupikeun produsén klep kupu-kupu flange ganda seated lemes sareng supplier. Asalna diadegkeun di AS sareng engké ngadegkeun pangkalan produksi di Cina. Markas globalna aya di Wenzhou. Simkuring gaduh pangalaman industri euyeub tur pilih bahan baku kualitas luhur alam pikeun ngahontal sertifikasi dahareun kelas. Éta bisa dipaké pikeun pipelines dahareun, kayaning konstruksi pipa tutuwuhan sumber susu jeung tutuwuhan desalination seawater.

Kirim Pananya

Panjelasan Produk

Unggal klep kukupu flange ganda seated lemes tina Waits boga ciri di handap ieu:
1. karét korsi klep élastisitas tinggi
EPDM eusi karét korsi klep nyaeta 50%, sarta eta geus diuji pikeun leuwih ti 10.000 kali simulated lawang jeung nutup tanpa leakage.
Shore A hardness/degree 72 ±3,200% tensile stress/Mpa≥6, tensile strength Mpa≥15, elongation at break/%≥350, permanent deformation at break/%≦10, tear strength/KN.m-1≥35, compression permanent deformation (70℃*22h, compression rate 25%)/%≦20 (Wide side valve seat) Compared with narrow side valve seat, the wide side valve seat has a wider contact surface with the pipeline flange, with a diameter of about 20 mm, and better installation sealing performance.
2. The kukupu piring jeung klep aci disambungkeun tanpa pin, nu lengkep bisa nyingkahan leakage na korosi disababkeun ku masang pin. Aci klep gampang dibongkar sareng korsi klep gampang diganti.
3. Awak klep ieu dilengkepan hiji alat anti ngalayang, nu hadé tur aman dipaké dina pipelines.

Implementation Standards

Standar Desain	API 609, EN 593, BS 5155, GOST
Standar tungtung	ANSI B16.1 CL. 125LB jeung B16,5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 sareng PN16 AS 2129 Tabél D jeung E BS 10 Tabél D jeung E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 jeung PN16 ISO 7005 PN6, PN10 jeung PN16
Inspeksi & Test	API 598, IS0 5208, EN 12266-1, GOST
Face to Face	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Aplikasi

Operating Temperature	-45 ℃ ~ 150 ℃
Ukuran	2"-80", DN50-DN2000
Tekanan kerja / CWP	16BAR 10BAR
Cangkang	24BAR 15BAR
Segel	18BAR 10BAR
Uji hawa	6BAR 6BAR
Lingkungan Operasi	Ballast jeung sistem bilge processing Kimia tutuwuhan desalination, rigs pangeboran, cai nginum bubuk garing, Dahareun jeung inuman, tutuwuhan Gas Industri Pertambangan HAVC, Industri Kertas, Penanganan Keusik, Cai Laut, Industri Gula Thermo teknis perlakuan cai Cai runtah
Operator	Lever, Gear, Electric, Pneumatic, jsb.
Bahan Awak	Beusi tuang, Beusi ulet, Baja Karbon, Stainless Steel, AL-Perunggu, jsb.
Disk	Beusi tuang, Beusi ulet, Karbon Steel, Stainless Steel, AL-perunggu
Stem	2CR13 F304 F316 F51 F53 Monel K500
Seat	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon karét alam
