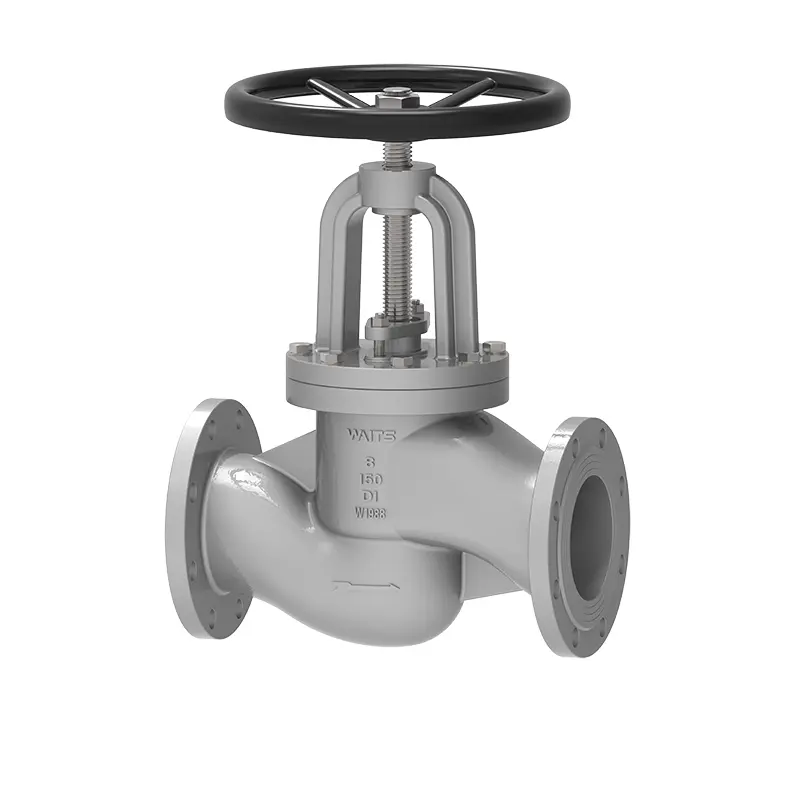

ulet Beusi S Pola Globe klep

The ductile beusi pola dunya klep S dijieun ku Waits luyu jeung AISI / DIN / BS / standar, kalawan kinerja stabil sarta kinerja ongkos tinggi. Kami mimitina diadegkeun di Amérika Serikat, sareng ayeuna markas global kami aya di Wenzhou, Cina. Simkuring gaduh leuwih ti hiji basis produksi, suplai stabil, sarta bisa nyadiakeun Anjeun sareng harga preferential.

Kirim Pananya

Panjelasan Produk

The ductile beusi pola S klep globe dihasilkeun Waits dirancang pikeun kontrol aliran tepat na leakage minimum. Urang taliti milih bahan baku pikeun mastikeun yén résistansi korosi klep sareng résistansi ngagem aya dina kisaran anu dipercaya sareng cocog pikeun panggunaan jangka panjang.
klep globe ieu dirancang pikeun adaptasi jeung kaayaan tekanan tinggi sarta bisa tetep stabil sarta dipercaya dina aplikasi industri béda. Éta adaptasi kana kaayaan kerja anu béda sareng karakteristik pipa, sareng henteu ngabutuhkeun pangropéa anu sering. Éta gaduh umur jasa anu saé sareng ngirangan biaya tenaga kerja sareng pangropéa nalika dianggo.
The throttling capacity of the ductile iron S pattern globe valve is widely used in water treatment plants, steam applications and chemical industries. In addition, some high-pressure systems will also choose this valve because of its good structural strength and strong adaptability.

Standar Palaksanaan

Standar desain	, API603, ASME B16.34, DIN 3352, EN1984
Standar flange	ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545;
Métode sambungan	SW, RF,
Nguji jeung narima	API598, DIN 3230, EN 12569
Panjang struktural	ASME B16.10, DIN3352-F4/F5, EN 558-1
Tingkat tekanan sareng suhu	ASME B16.34,
Standar leakage low	ISO 15848-1, API 622
Desain anti korosi	NACE MR 0103, NACE MR 0175

Aplikasi

Ukuran	NPS 2″ ~ NPS 12″ DN50~ DN300
Pressure range	CL125~ CL300 PN10~ PN64
Rentang suhu	；-10°C ~ +220°C
Rentang aplikasi	Ketok cai, kokotor, konstruksi, minyak bumi, industri kimia, kadaharan, ubar, tékstil, listrik, shipbuilding, metallurgy, sistem énergi, jsb.
Drive mode	Turbin, pneumatik, listrik
Awak klep / panutup klep	DI WCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A),
Klep plat / korsi klep	DI, DI+EPDM, WCB, WCB+EPDM CF8, CF8M, CF3, CF3M
Batang klep	F6A F304 F316 F51 F53 Monel K500
Nut batang klep	Alloy tambaga
Bungkusan	Grafit fleksibel, grafit asbés packing, polytetrafluoroethylene ...

Performance Features

(1) The structure of the stop valve is simpler than that of the gate valve, and it is easier to manufacture and maintain.
(2) Beungeut sealing teu gampang mun teu ngagem tur scratch, sarta kinerja sealing téh alus. Aya henteu ngageser relatif antara disc klep jeung beungeut sealing awak klep salila muka jeung nutup, jadi maké jeung scratch teu serius, kinerja sealing téh alus, sarta hirup layanan panjang.
(3) Nalika muka sareng nutup, cakram klep gaduh stroke leutik sareng jangkungna langkung alit tibatan klep gerbang, tapi panjangna strukturna langkung panjang tibatan klep gerbang.
(4) Bubuka sareng nutup torsi ageung sareng waktos muka sareng nutup relatif panjang.
(5) Kusabab saluran sedeng dina awak klep nyaeta tortuous, résistansi cairan badag sarta konsumsi kakuatan relatif badag.
(6) Nalika tekanan nominal PN tina arah aliran sedeng nyaéta ≤16MPa, hilir umumna diadopsi, sarta sedeng ngalir ka luhur ti handap disc klep; nalika tekanan nominal PN≥20MPa, aliran sabalikna umumna diadopsi, sarta sedeng ngalir ka handap ti luhur disc klep pikeun ngaronjatkeun kinerja sealing. Nanging, kedah diperhatoskeun yén nalika nganggo klep eureun, médium ngan ukur tiasa ngalir dina hiji arah sareng henteu tiasa ngarobih arah aliran.
(7) The klep disc gampang eroded nalika pinuh kabuka, jadi Anjeun kudu nengetan lamun maké éta.
The valve stem axis of the stop valve is perpendicular to the valve seat sealing surface. The valve stem opening or closing stroke is relatively short and has a reliable cutting action. It is suitable for cutting off, regulating and throttling the medium.

Ductile Iron S Pattern Globe Valve
